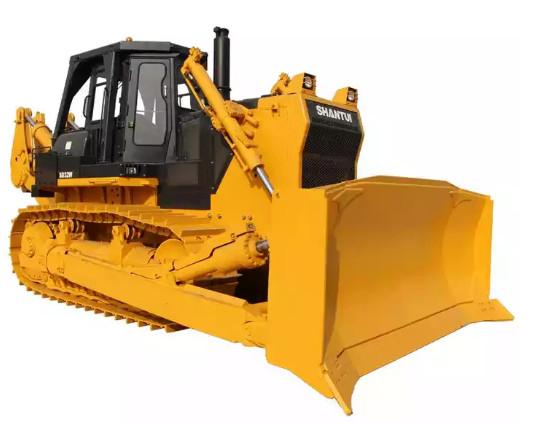

Crawler Type Construction Bulldozer Truck Engineering Machinery 131Kw

Brand Name : XINXING CATHAY EMERGENCY

Place of Origin : CHINA

MOQ : 1 Unit

Price : Bargain

Payment Terms : L/C, T/T

Supply Ability : 1/45DAYS

Delivery Time : 45DAYS

Engine : WP10G178E355

Operation weight（Kg : 15738

Rated power (Kw/rpm) : 131/1850

Overall dimensions L×W×H (mm) : 5125*3416*3190

Blade type : Straight shovel

Min.ground radium（m) : 3.1

Grade ability（°） : 30

Max.drawbar pull（KN） : 144

Forward（Km/H） : 2.7/3.7/5.4/7.6/11

Name : Low Fuel Consumption Bulldozer

Keywords : Construction Bulldozer Truck

Contact Now

131Kw Crawler Type Low Fuel Consumption Bulldozer Engineering Construction Machinery

It uses patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system. With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD22 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.

Engine

 WP10G178E355

Rated power (Kw/rpm)

131/1850

Fuel consumption(g/KwH)

≦ 215

Max torque (NM/rpm)

830/1150

Min.ground radium(m)

 3.1

Grade ability(°)

 30

Max.drawbar pull(KN)

 144
Operation weight(Kg) 15738

Forward(Km/H)

2.7/3.7/5.4/7.6/11

Reverse(Km/H)

3.5/4.9/7.0/9.8

Ground contact length (mm)

 2430

Shoe width (mm)

 510

Ground pressure (Kpa)

 63

Min.ground clearance (mm)

 400

Blade capacity (M³)

 4.5

Working efficiency (for 40m moving) (M3/h)

 255

System pressure (Mpa)

 13.7

1. Warranty time is 12 months.


2. Our after-sales engineers are experienced, they can make professional answers for the problems you may encounter, extend the life of trucks.We provide technical support for our trucks and whole life parts supply.


3. Tell us your shipping needs, our sales manager will customize the most suitable trucks for you according to your needs.
